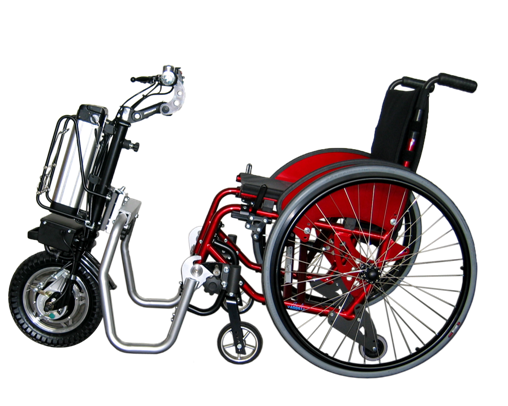

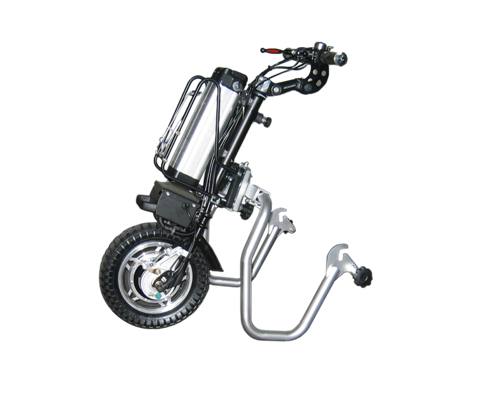

BYCO DRIVE

DEVICE FOR THE MOTORIZATION OF THE WHEELCHAIRS

PECULIARITY  it's a device unique in this kind because it doesn't need to be removed to rise and fall from the wheelchair. In case of need, it can to be easily removed and eventually aslo separated in many lighter and handy portions, easy to be inserted in the luggage van of any car. It has a full chassis in galvanized steel, guarantee of solidity and durability. It can be placed inside any travel bag and carried anywhere. Even on the plane.

SPECIAL NOTES by a practical kit sold separately, all the folding scooter BYCOPLUS and BYCOSPORT can be easily converted to a haul unit to be hooked to the wheelchairs. Here by specifically the folding wheelchair VASSILLI Art. 17.70N - Evolution Activa Compact.

DETACHE WHEELCHAIRS:

WITHOUT USE OF ANY TOOLS

MOTOR

BRUSHELESS 12" 36 Volt 250 Watt (*)

CONTROLLER

MOSFET 36 Volt AUTOPROTETTO

GEARS

FORWARDS AND BACKWARDS

SPEED

► PUBBLIC AREAS

6 Km/h - PRESETTED AS PER LAWS

► PRIVATE AREAS

20 Km/h IN PRIVATE AREAS - HANDLY ACTIVABLE

AUTONOMY

MORE THAN 50 Km ON FLAT SURFACES WITH 80Kg USER AND SPEED AS PER LAWS

BATTERY

LITHIUM 36 Volt - 10 A/h - WEIGHT 3,5 Kg WITH CHARGE INDICATOR

CHARGER

2 Amp - 220 Volt - RECHARGER TIMES 5/6 HOURS

TURNING RADIUS

50 cm

MAX SLOPE

10% MAX

BRAKE

DRUM SPECIAL TYPE HIGHT EFFICIENCY WITH PARKING FUNCTION

WHEEL

305x70 mm INFLATABLE AND CLAWED W/O SPOKES

HANDLE

ADJUSTABLE AND RECLINE

WEIGHT

10 Kg TOTAL WITHOUT BATTERY

SPECIAL SOLUTION

AVAILABLE WITH MOTOR 36 Volt - 350 Watt  (*) AND COMPUTER PROGRAMMABLE CONTROLLER

OPTIONALS ON

DEMAND

FRONT LIGHT WITH SOUND INDICATOR

REAR VIEW MIRROR

BATTERY PROTECTION TUBE WITH RACK

UMBRELLA SUPPORT

REQUEST INFORMATION >>>>

GO TO THE ONLINE FORM

BROCHURE >>>>

DOWNLOAD DATASHEET

PHOTO GALLERY >>>>

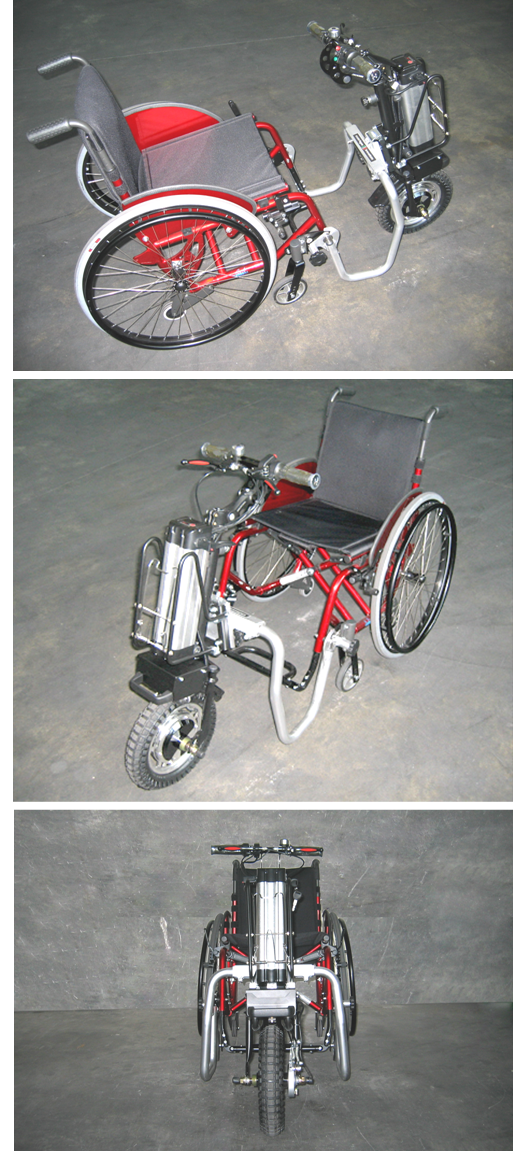

Preview images taken during the REHACARE
